A1193, A1190 Two-Wire Hall-Effect Switches

Allegro

Description

A119x and A119x-F Programmable, Chopper-Stabilized, Two-Wire Hall-Effect Switches .
The A119x and A119x-F comprise a family of two-wire, unipolar, Hall-effect switches, which can be trimmed by the user at end-of-line to optimize magne.

📥 Download Datasheet

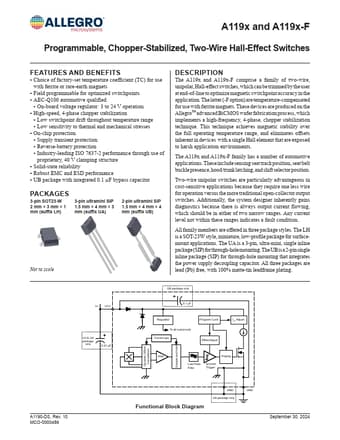

A1193 Datasheet Preview — This datasheet PDF includes multiple part numbers: A1193, A1190. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: A1193, A1190
Manufacturer: Allegro
File Size: 1.32 MB
Datasheet: A1190-Allegro.pdf
Description: Two-Wire Hall-Effect Switches
Note: This datasheet PDF includes multiple part numbers: A1193, A1190.
Please refer to the document for exact specifications by model.

Features

* ▪ Choice of factory-set temperature coefficient (TC) for use with ferrite or rare-earth magnets ▪ Field programmable for optimized switchpoints ▪ AEC-Q100 automotive qualified ▫ On-board voltage regulator: 3 to 24 V operation ▪ High-speed, 4-phase chopper stabilization ▫ Low switchpoint drift throug

Applications

* These include sensing seat track position, seat belt buckle presence, hood/trunk latching, and shift selector position. Two-wire unipolar switches are particularly advantageous in cost-sensitive applications because they require one less wire for operation versus the more traditional open-collector
