A1184 - Unipolar Hall-Effect Switches

Product Overview

Allegro

📥 Download Datasheet

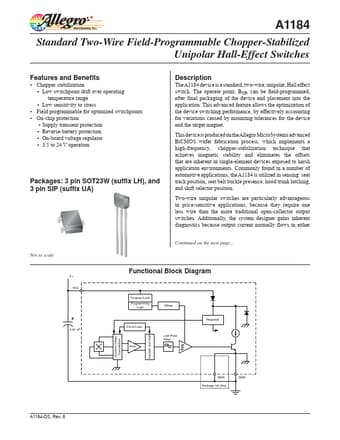

A1184 Unipolar Hall-Effect Switches by Allegro - Datasheet Preview — Datasheet preview – A1184

Datasheet Details

Part number	A1184
Manufacturer	Allegro
File Size	333.84 KB
Description	Unipolar Hall-Effect Switches
Datasheet	A1184 Datasheet
Additional preview pages of the A1184 datasheet.

Product details

Description

TheA1184 device is a standard, two-wire, unipolar, Hall effect switch.

Features

Chopper stabilization ▫ Low switchpoint drift over operating temperature range ▫ Low sensitivity to stress.
Field programmable for optimized switchpoints.
On-chip protection ▫ Supply transient protection ▫ Reverse-battery protection ▫ On-board voltage regulator ▫ 3.5 to 24 V operation Packages: 3 pin SOT23W (suffix LH), and 3 pin SIP (suffix UA).
