A6261 - Protected LED Array Driver

Description

TheA6261 is a linear, programmable current regulator providing up to 100 mA from each of four outputs (LP and LY) to drive arrays of high brightness LEDs.

The regulated LED current from each output, accurate to 5%, is set by a single reference resistor.

Features

  • AEC-Q100 qualified.
  • Total LED drive current up to 400 mA (LP, LJ, and LY packages) or 300 mA (LJ).
  • Current shared equally up to 100 mA by up to 4 strings (LP and LY).
  • 6 to 50 V supply.
  • Low dropout voltage.
  • LED output short-to-ground and thermal protection.
  • Disable on open LED detection option.
  • Enable input for PWM control.
  • Current slew rate limit during PWM.
  • Current set by reference resistor.
  • Auto.

📥 Download Datasheet

Datasheet Details

Part number A6261
Manufacturer Allegro MicroSystems
File Size 1.88 MB
Description Protected LED Array Driver
Datasheet download datasheet A6261 Datasheet

📁 Similar Datasheet

  • A6263 - Protected LED Array Driver (Allegro)
  • A6265 - Automotive High Current LED Controller (Allegro)
  • A6267 - Automotive High Current LED Controller (Allegro)
  • A6269 - Automotive LED Array Driver (Allegro)
  • A6201 - 250mA LOW CONSUMPTION LINEAR REGULATOR (AiT Semiconductor)
  • A6201A - CMOS LOW DROPOUT REGULATOR (AiT Semiconductor)
  • A6211 - Buck Regulator LED Driver (Allegro)
  • A6213 - PWM Dimmable Buck Regulator LED Driver (Allegro)
  • A6213-1 - PWM Dimmable Buck Regulator LED Driver (Allegro)
  • A6214 - Constant-Current 2A PWM Dimmable Buck Regulator LED Driver (Allegro)
Other Datasheets by Allegro MicroSystems
  • A6260 - High Brightness LED Current Regulator
  • A6262 - Automotive LED Array Driver
  • A6264 - Automotive Stop/Tail LED Array Driver
  • A6266 - High Current LED Controller
  • A6268 - Automotive High Current LED Controller
  • A6210 - 3A 2MHz Buck-Regulating LED Driver
  • A6219DS - Dual Full-Bridge PWM Motor Driver
  • A6252 - STR-A6252

Full PDF Text Transcription

Click to expand full text

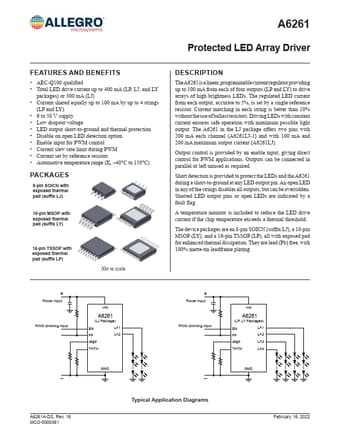

A6261 Protected LED Array Driver FEATURES AND BENEFITS • AEC-Q100 qualified • Total LED drive current up to 400 mA (LP, LJ, and LY packages) or 300 mA (LJ) • Current shared equally up to 100 mA by up to 4 strings (LP and LY) • 6 to 50 V supply • Low dropout voltage • LED output short-to-ground and thermal protection • Disable on open LED detection option • Enable input for PWM control • Current slew rate limit during PWM • Current set by reference resistor • Automotive temperature range (K, –40°C to 150°C) PACKAGES 8-pin SOICN with exposed thermal pad (suffix LJ) 10-pin MSOP with exposed thermal pad (suffix LY) 16-pin TSSOP with exposed thermal pad (suffix LP) Not to scale DESCRIPTION TheA6261 is a linear, programmable current regulator providing up to 100 mA from each of four outputs
