A2023 (A20xx) High Voltage High Current Darlington Arrays

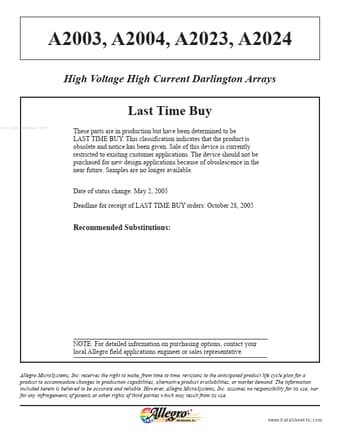

A2003, A2004, A2023, A2024 High Voltage High Current Darlington Arrays Last Time Buy www.DataSheet4U.com These parts are in production but have been determined to be LAST TIME BUY. This classification indicates that the product is obsolete and notice has been given. Sale of this device is currently restricted to existing customer applications. The device should not be purchased for new design applications because of obsolescence in the near future. Samples are no longer available. Date of stat.

A2023 Features

* I TTL, DTL, PMOS, or CMOS-Compatible Inputs I Output Current to 500 mA I Output Voltage to 95 V I Transient-Protected Outputs I Dual In-Line Plastic Package or Small-Outline IC Package x = digit to identify specific device. Characteristic shown applies to family of devices with remaining digits as
