ATS682LSH True Zero Speed Differential Peak-Detecting Sensor

ATS682LSH Description

ATS682LSH Miniature, Two-Wire, True Zero Speed Differential Peak-Detecting Sensor IC .
The ATS682LSH is a Hall-effect integrated circuit and rare earth pellet combination that provides a user-friendly solution for true zero-speed digital.

ATS682LSH Features

* ▪ True zero-speed operation ▪ Automatic Gain Control (AGC) for air gap independent switch points ▪ Automatic Offset Adjustment (AOA) for signal processing optimization ▪ Running-mode calibration for continuous optimization ▪ Precise duty cycle over operating temperature range ▪ Internal current regu

ATS682LSH Applications

* This small package, with an optimized two-wire leadframe, can be easily assembled and used in conjunction with a wide variety of gear shapes and sizes. The integrated circuit incorporates a dual-element Hall-effect circuit and signal processing that switches in response to differential magnetic sig

📥 Download Datasheet

Preview of ATS682LSH PDF

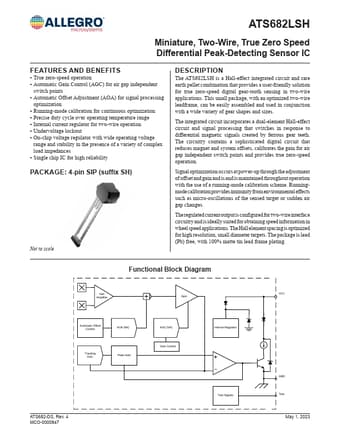

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATS682LSH
Manufacturer
Allegro Micro Systems
File Size
1.09 MB
Datasheet
ATS682LSH_AllegroMicroSystems.pdf
Description
True Zero Speed Differential Peak-Detecting Sensor
