A4411 - Adjustable Frequency Buck or Buck-Boost Pre-Regulator

Allegro Micro Systems

📥 Download Datasheet

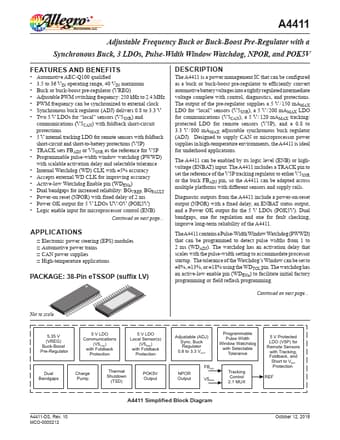

A4411 Datasheet Preview — Preview of A4411 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: A4411
Manufacturer: Allegro Micro Systems
File Size: 1.57 MB
Datasheet: A4411-AllegroMicroSystems.pdf
Description: Adjustable Frequency Buck or Buck-Boost Pre-Regulator

A4411 Product details

Features

Automotive AEC-Q100 qualified.
3.5 to 36 VIN operating range, 40 VIN maximum.
Buck or buck-boost pre-regulator (VREG).
Adjustable PWM switching frequency: 250 kHz to 2.4 MHz.
PWM frequency can be synchronized to external clock.
Synchronous buck regulator (ADJ) delivers 0.8 to 3.3 V.
Two 5 V LDOs for “local” sensors (V5SNR) and communications (V5CAN) with foldback short-circuit protections.
5 V internal tracking LDO.
