A1698 - High Accuracy Sensor

A1698 Description

A1698 Two-Wire, True Zero-Speed, High Accuracy Sensor IC with Speed and Direction Output .
The A1698 is a Hall-effect-based integrated circuit (IC) that provides a user-friendly solution for two-wire speed sensing of ring magnets or ferrous.

A1698 Features

* Integrated capacitor for EMC suppression in a single overmolded miniature package
* Wide leads facilitate ease of assembly
* True zero-speed operation
* Pulse-width output protocol
* Automatic Gain Control (AGC) for air gap independent switch points

A1698 Applications

* where speed and direction is required. The A1698 is offered in the UB package, which integrates the IC and a high temperature ceramic capacitor in a single overmolded SIP package. The integrated capacitor provides enhanced EMC performance. The integrated circuit incorporates Hall-effect circuits and

📥 Download Datasheet

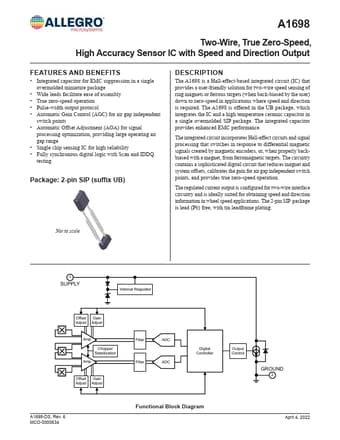

Preview of A1698 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1698
Manufacturer
Allegro Micro Systems
File Size
802.19 KB
Datasheet
A1698-AllegroMicroSystems.pdf
Description
High Accuracy Sensor
