AFN1010S - N-Channel Enhancement Mode MOSFET

Download the AFN1010S datasheet PDF. This datasheet also covers the AFN1010S-Alfa variant, as both devices belong to the same n-channel enhancement mode mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

AFN1010S, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial applications.

Features

  • z 100V/15A,RDS(ON)= 9mΩ@VGS=10V z 100V/10A,RDS(ON)=13mΩ@VGS=4.5V z Super high density cell design for low RDS (ON) z TO-220-3L package design.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AFN1010S-Alfa-MOS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AFN1010S
Manufacturer Alfa-MOS
File Size 387.57 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet AFN1010S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AFN2308AS23RG N-Channel 60V MOSFET VBsemi
AFND1208U1 512Mbit (64M x 8-Bit)NAND FLASH ATO
AFND1G08U3 1G-bit NAND FLASH ATO

Other Datasheets by Alfa-MOS

Part Number Description
AFN1012 N-Channel MOSFET
AFN1012E N-Channel MOSFET
AFN1024 N-Channel MOSFET
AFN1024E N-Channel MOSFET
AFN1026S N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

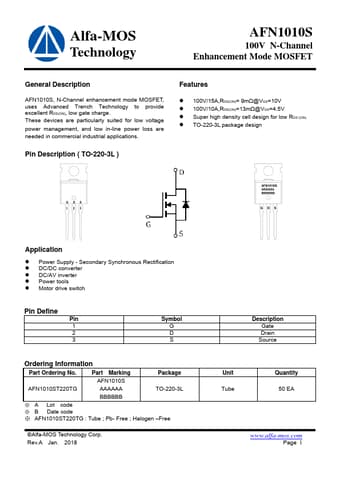

Alfa-MOS Technology AFN1010S 100V N-Channel Enhancement Mode MOSFET General Description AFN1010S, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial applications. Pin Description ( TO-220-3L ) Features z 100V/15A,RDS(ON)= 9mΩ@VGS=10V z 100V/10A,RDS(ON)=13mΩ@VGS=4.5V z Super high density cell design for low RDS (ON) z TO-220-3L package design Application z Power Supply - Secondary Synchronous Rectification z DC/DC converter z DC/AV inverter z Power tools z Motor drive switch Pin Define Pin 1 2 3 Symbol G D S Ordering Information Part Ordering No.
