AFC7440 - N&P-Channel MOSFET

Download the AFC7440 datasheet PDF (AFC7440-Alfa included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for n&p-channel mosfet.

Description

AFC7440, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications.

Features

  • N-Channel z 40V/8A,RDS(ON)= 18mΩ@VGS=10V z 40V/7A,RDS(ON)= 25mΩ@VGS=4.5V P-Channel z -40V/-8.0A,RDS(ON)= 30mΩ@VGS= -10V z -40V/-7.0A,RDS(ON)= 42mΩ@VGS= -4.5V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AFC7440-Alfa-MOS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AFC7440
Manufacturer Alfa-MOS
File Size 617.34 KB
Description N&P-Channel MOSFET
Datasheet download datasheet AFC7440 Datasheet

📁 Similar Datasheet

Other Datasheets by Alfa-MOS

Full PDF Text Transcription

Click to expand full text

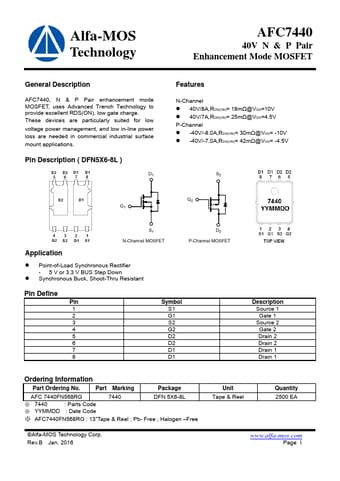

Alfa-MOS Technology AFC7440 40V N & P Pair Enhancement Mode MOSFET General Description AFC7440, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications. Pin Description ( DFN5X6-8L ) Features N-Channel z 40V/8A,RDS(ON)= 18mΩ@VGS=10V z 40V/7A,RDS(ON)= 25mΩ@VGS=4.5V P-Channel z -40V/-8.0A,RDS(ON)= 30mΩ@VGS= -10V z -40V/-7.0A,RDS(ON)= 42mΩ@VGS= -4.5V Application z Point-of-Load Synchronous Rectifier - 5 V or 3.
