CVM60, Alternating Lights

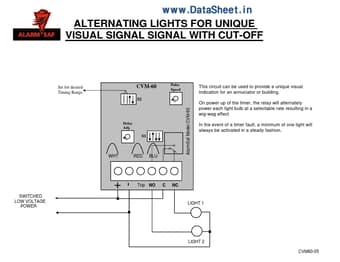

ALTERNATING LIGHTS FOR UNIQUE VISUAL SIGNAL SIGNAL WITH CUT-OFF Set for desired Timing Range CVM-60 S2 Pulse Speed This circuit can be used to provide a unique visual indication for an annuciator or building.

On power up of the timer, the relay will alternately power each light bulb at a selectable rate resulting in a wig-wag effect.

In the event of a timer fault, a minimum of one light will always be activated in a steady fashion.

Delay Adj.

S1 WHT RED BLU + SWITCHED LOW VOLTAGE POWER
