AT5550 - 2-Channel Motor Driver

AT5550 Description

www.DataSheet4U.com AT5550 2-Channel Motor Driver for DSC .
The AT5550 is a 2-channel low-saturation, low-voltage H-bridge motor driver IC for DSC motor application. DC motor, stepping mo.

AT5550 Features

* Independent 2-Channel H-Bridge
* Low voltage operation ( VCC = 2.0V)
* Low on-resistance

AT5550 Applications

* DC motor, stepping motor Block Diagram Aimtron reserves the right without notice to change this circuitry and specifications. 7F, NO.9, Park Avenue II, Science-Based Industrial Park, Hsinchu 300, Taiwan, R. O. C. Tel: 886-3-563-0878 Fax: 886-3-563-0879 WWW: http://www. aimtron. com. tw 8/7/2

📥 Download Datasheet

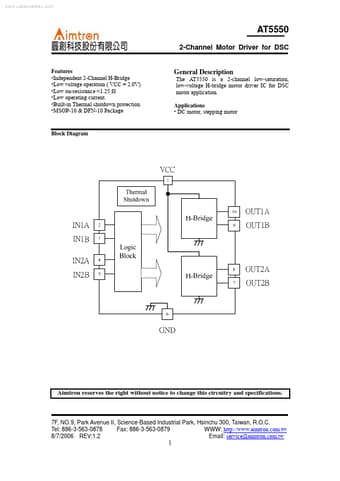

Preview of AT5550 PDF
