AT1452 Photoflash Capacitor Charger

AT1452 Description

www.DataSheet4U.com AT1452 Preliminary Product Information Photoflash Capacitor Charger for DSC .
The AT1452 is a charger control IC for Photoflash capacitor with soft start function, adjustable maximum duty cycle, auto-refresh and autodischarge (s.

AT1452 Features

* 2.5 to 5.5V supply voltage operating range.
* Low current consumption: 1mA in operation,
* 50 kHz or 100kHz operation frequency .
* Built-in maximum duty control.
* Push-pull output.
* Built-in soft start circuit.
* Built-in auto-discharge fu

AT1452 Applications

* Digital Still Cameras flash unit Block Diagram Aimtron reserves the right without notice to change this circuitry and specifications. 2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R. O. C. Tel: 886-3-563-0878 WWW: http://www. aimtron. com. tw Fax: 886-3-563-

📥 Download Datasheet

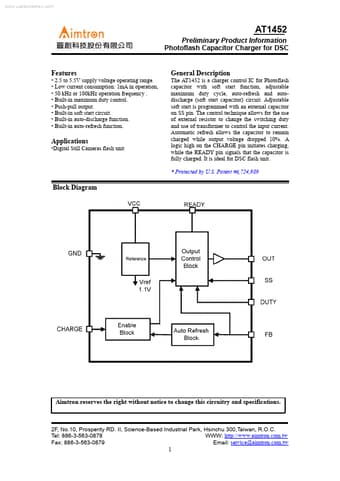

Preview of AT1452 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT1452
Manufacturer
Aimtron Technology
File Size
630.78 KB
Datasheet
AT1452_AimtronTechnology.pdf
Description
Photoflash Capacitor Charger
