A2331 - 3W ANTI-CLIP CLASS-D AUDIO AMPLIFIER

AiT Semiconductor

Datasheet Details

Part number	A2331
Manufacturer	AiT Semiconductor
File Size	438.47 KB
Description	3W ANTI-CLIP CLASS-D AUDIO AMPLIFIER

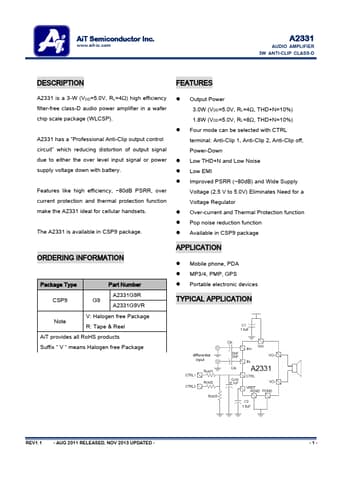

Datasheet	A2331-AiTSemiconductor.pdf

A2331 is a 3-W (VDD=5.0V, RL=4Ω) high efficiency.
Output Power filter-free class-D audio power amplifier in a wafer 3.0W (VDD=5.0V, RL=4Ω, THD+N=10%) chip scale package (WLCSP). 1.8W (VDD=5.0V, RL=8Ω, THD+N=10%).
Four mode can be selected with CTRL A2331 has a “Professional Anti-Clip output control terminal: Anti-Clip 1, Anti-Clip 2, Anti-Clip off, circuit” which reducing distortion of output signal Power-Down due to either the over level input signal or power.
Low THD+.
