MUN2212 - NPN SILICON SURFACE MOUNT TRANSISTOR

Product Overview

AiT Components

📥 Download Datasheet

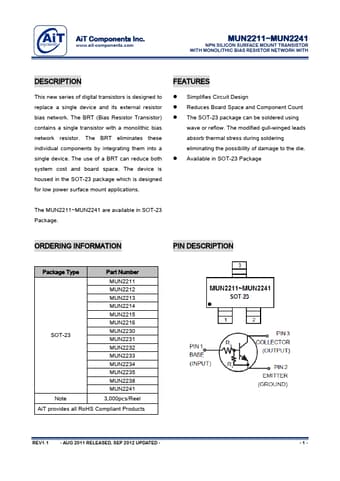

MUN2212 NPN SILICON SURFACE MOUNT TRANSISTOR by AiT Components - Datasheet Preview — Datasheet preview – MUN2212

Datasheet Details

Part number	MUN2212
Manufacturer	AiT Components
File Size	1.51 MB
Description	NPN SILICON SURFACE MOUNT TRANSISTOR
Datasheet	MUN2212 Datasheet
Note	This datasheet PDF includes multiple part numbers: MUN2212, MUN2211. Please refer to the document for exact specifications by model.
Additional preview pages of the MUN2212 datasheet.

Product details

Description

This new series of digital transistors is designed to replace a single device and its external resistor bias network.

Features

Simplifies Circuit Design.
Reduces Board Space and Component Count.
The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.
Available in SOT-23 Package The MUN2211~MUN2241 are available in SOT-23 Package.
