HMMC-2007 DC-8 GHz Terminated SPDT Switch

HMMC-2007 Description

Agilent HMMC-2007 DC *8 GHz Terminated SPDT Switch 1GG7-8004 Data Sheet RF SEL1 Common SEL2 .
The HMMC-2007 is a GaAs monolithic microwave integrated circuit (MMIC) designed for low insertion loss and high isolation from DC to 8 GHz.

HMMC-2007 Features

* Outputs terminated in 50 Ω when off
* Frequency range: DC to 8 GHz
* Insertion loss: 1.2 dB @ 8 GHz
* Isolation: > 70 dB @ 45 MHz > 35 dB @ 8 GHz
* Return loss: 25 dB (both input and selected output) 18 dB unselected output
* Switching speed: < 20 µ

📥 Download Datasheet

Preview of HMMC-2007 PDF

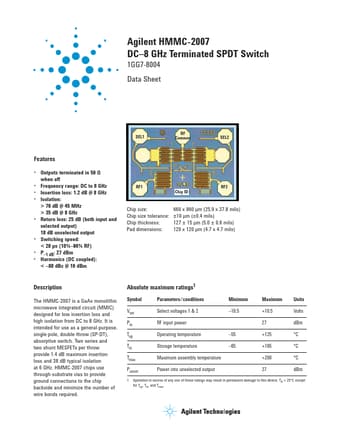

datasheet Preview Page 2 datasheet Preview Page 3
