The 1GC1-8235 is 0-20 GHz Integrated Diode Limiter designed by Agilent.

Product Overview

Agilent

Datasheet Details

Part number	1GC1-8235
Manufacturer	Agilent
File Size	150.39 KB
Description	0-20 GHz Integrated Diode Limiter
Datasheet	1GC1-8235-Agilent.pdf

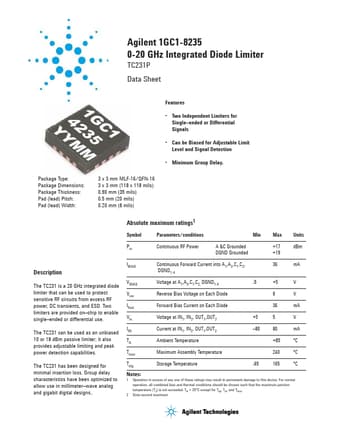

Additional preview pages of the 1GC1-8235 datasheet.

Product details

Description

The TC231 is a 20 GHz integrated diode limiter that can be used to protect sensitive RF circuits from excess RF power, DC transients, and ESD. chip to enable single ended or differential use.

Features

Two Independent Limiters for Single.
ended or Differential Signals.
Can be Biased for Adjustable Limit Level and Signal Detection.
Minimum Group Delay. Package Type: Package Dimensions: Package Thickness: Pad (lead) Pitch: Pad (lead) Width: 3 x 3 mm MLF-16/QFN-16 3 x 3 mm (118 x 118 mils) 0.90 mm (35 mils) 0.5 mm (20 mils) 0.20 mm (8 mils) Absolute maximum ratings1 Symbol Parameters/conditions Min Max Units Pin Continuous RF Power A &C Grounded +17 dB.
