VTO-8850 - Varactor-Tuned Oscillators

Download the VTO-8850 datasheet PDF (VTO included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for varactor-tuned oscillators.

Description

HP VTO-8000 Series oscillators use a silicon transistor chip as a negative resistance oscillator.

The oscillation frequency is determined by a silicon abrupt varactor diode acting as a voltage-variable capacitor in a thin-film microstripline resonator.

Features

  • 600 MHz to 10.5 GHz Coverage.
  • Fast Tuning.
  • +7 to +13 dBm Output Power.
  • ± 1.5 dB Output Flatness.
  • Hermetic Thin-film Construction.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VTO-800.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VTO-8850
Manufacturer Agilent(Hewlett-Packard)
File Size 918.09 KB
Description Varactor-Tuned Oscillators
Datasheet download datasheet VTO-8850 Datasheet

📁 Similar Datasheet

  • VTO-8951 - Voltage Controlled Oscillator (Hewlett-Packard)
  • VTO110-12io7 - Three Phase Full Controlled Rectifier Bridge (IXYS)
  • VTO110-14io7 - Three Phase Full Controlled Rectifier Bridge (IXYS)
  • VTO175-12io7 - Three Phase Full Controlled Rectifier Bridge (IXYS)
  • VTO175-14io7 - Three Phase Full Controlled Rectifier Bridge (IXYS)
  • VTO39-06io7 - Three Phase Rectifier Bridge (IXYS)
  • VTO39-08io7 - Three Phase Rectifier Bridge (IXYS)
  • VTO39-12io7 - Three Phase Rectifier Bridge (IXYS)
  • VTO70-08io7 - Three Phase Rectifier Bridge (IXYS)
  • VTO70-12io7 - Three Phase Rectifier Bridge (IXYS)
Other Datasheets by Agilent(Hewlett-Packard)

Full PDF Text Transcription

Click to expand full text

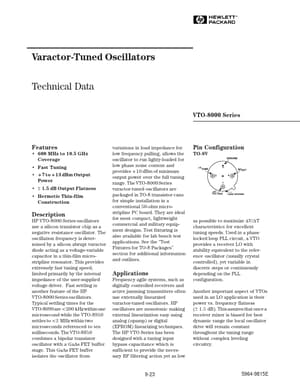

Varactor-Tuned Oscillators Technical Data VTO-8000 Series Features • 600 MHz to 10.5 GHz Coverage • Fast Tuning • +7 to +13 dBm Output Power • ± 1.5 dB Output Flatness • Hermetic Thin-film Construction Description HP VTO-8000 Series oscillators use a silicon transistor chip as a negative resistance oscillator. The oscillation frequency is determined by a silicon abrupt varactor diode acting as a voltage-variable capacitor in a thin-film microstripline resonator. This provides extremely fast tuning speed, limited primarily by the internal impedance of the user-supplied voltage driver. Fast settling is another feature of the HP VTO-8000 Series oscillators.
