LUCW3030ACA-DB - W3030 3 V Dual-Mode IF Cellular Receiver

Agere Systems

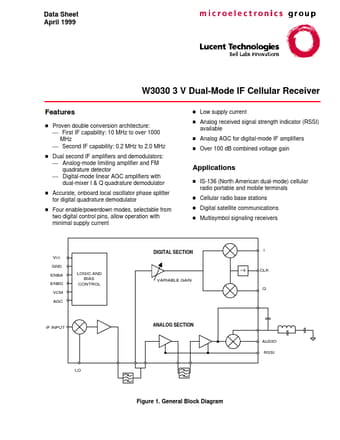

LUCW3030ACA-DB Datasheet Preview — Preview of LUCW3030ACA-DB PDF

Datasheet Details

Part number	LUCW3030ACA-DB
Manufacturer	Agere Systems
File Size	429.82 KB
Description	W3030 3 V Dual-Mode IF Cellular Receiver
Datasheet	LUCW3030ACA-DB_AgereSystems.pdf

LUCW3030ACA-DB Product details

Description

Pin Information5 Absolute Maximum Ratings7 Handling Precautions 7 Operating Ranges 8 Electrical Specifications 8 RSSI 11 Quadrature Detector11 Quad Tank S-Curves 12 Test Circuit Diagram 14 Characteristic Curves15 Outline Diagram20 32-Pin TQFP20 Manufacturing Information 21 Ordering Information 21 2 Lucent Technologies Inc.Data Sheet April 1999 W3030 3 V Dual-Mode IF Cellular Receiver parallel amplifier/demodulator sections.In the analog second IF, there is a 40 dB amplifier followed by a

Features

n n n Low supply current Analog received signal strength indicator (RSSI) available Analog AGC for digital-mode IF amplifiers Over 100 dB combined voltage gain Proven double conversion architecture:  First IF capability: 10 MHz to over 1000 MHz  Second IF capability: 0.2 MHz to 2.0 MHz Dual second IF amplifiers and demodulators:  Analog-mode limiting amplifier and FM quadrature detector  Digital-mode linear AGC amplifiers with dual-mixer I & Q quadrature demodulator Accurate, onboard local.
