D2555G32 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module

Download the D2555G32 datasheet PDF (D25 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for d2570/ d2526/ d2555 wavelength-selected direct modulated isolated dfb laser module.

Description

The Direct Modulated Isolated DFB Laser Module contains an internally cooled, InGaAs, MQW, distributed-feedback (DFB) laser designed for 1.5 µm applications.

Features

  • s ITU wavelengths available from 1528.77 nm.
  • 1610.06 nm SONET/SDH compatible up to OC-48/STM-16 Temperature tunable for precise wavelength selection Integrated optical isolator High-performance, multiquantum well (MQW) distributed-feedback (DFB) laser Industry-standard, 14-pin butterfly package Characterized at 2.488 Gbits/s (NRZ) InGaAs, PIN photodetector back-facet monitor Low threshold current High-reliability, hermetic packaging Excellent long-term wavelength stability can eliminate.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (D25-55G17.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number D2555G32
Manufacturer Agere Systems
File Size 112.03 KB
Description D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
Datasheet download datasheet D2555G32 Datasheet

📁 Similar Datasheet

  • D2553 - 2SD2553 (Toshiba)
  • D2557 - Silicon NPN Triple Diffused Planar Transistor (Sanken electric)
  • D2558 - 2SD2558 (Sanken electric)
  • D25-02C - ESAD25-02C (Fuji Electric)
  • D2500D - Standard Recovery Diode (nELL)
  • D2504 - 2SD2504 (Panasonic Semiconductor)
  • D2516EC4BXGGB - 4G-bits DDR3L SDRAM (Kingston)
  • D2520 - Rectifiers (RCA)
  • D2520-R - Rectifiers (RCA)
  • D2520A - Rectifiers (RCA)
Other Datasheets by Agere Systems
  • D2555G30 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G31 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G33 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G34 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G35 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G36 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G37 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module
  • D2555G38 - D2570/ D2526/ D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module

Full PDF Text Transcription

Click to expand full text

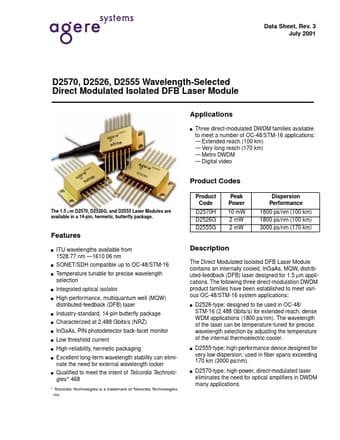

Data Sheet, Rev. 3 July 2001 D2570, D2526, D2555 Wavelength-Selected Direct Modulated Isolated DFB Laser Module Applications s Three direct-modulated DWDM families available to meet a number of OC-48/STM-16 applications: — Extended reach (100 km) — Very long reach (170 km) — Metro DWDM — Digital video Product Codes Product Code The 1.5 µm D2570, D2526G, and D2555 Laser Modules are available in a 14-pin, hermetic, butterfly package. Peak Power 10 mW 2 mW 2 mW Dispersion Performance 1800 ps/nm (100 km) 1800 ps/nm (100 km) 3000 ps/nm (170 km) D2570H D2526G D2555G Features s ITU wavelengths available from 1528.77 nm —1610.
