D171 - D171-Type FastLight PIN Photodetectors

Description

The D171-Type Photodetector consists of a PIN coupled to a multimode

Features

  • s Low-profil e, 4-lead mini-DIL pa ckage.
  • Suita ble for SONET.

📥 Download Datasheet

Datasheet Details

Part number D171
Manufacturer Agere Systems
File Size 155.71 KB
Description D171-Type FastLight PIN Photodetectors
Datasheet download datasheet D171 Datasheet

📁 Similar Datasheet

  • D1710 - Silicon NPN Power Transistor (SavantIC)
  • D1710 - Silicon Diffused Power Transistor (Wing Shing Computer)
  • D1711 - 2SD1711 (SavantIC)
  • D17133CS - UPD17133CS (NEC)
  • D17145CT - UPD17145CT (NEC)
  • D1716 - 2SD1716 (Inchange Semiconductor)
  • D1719G - UPD1719G (NEC)
  • D17006 - UPD17006 (NEC)
  • D17006AGF-011 - UPD17006AGF-011 (NEC)
  • D1702 - 2SD1702 (Renesas)
Other Datasheets by Agere Systems

Full PDF Text Transcription

Click to expand full text

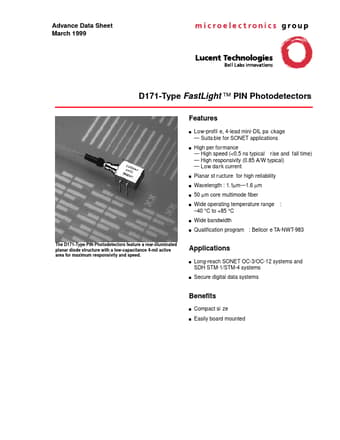

Advance Data Sheet March 1999 D171-Type FastLight ™ PIN Photodetectors Features s Low-profil e, 4-lead mini-DIL pa ckage — Suita ble for SONET applications s High per formance — High speed (<0.5 ns typical rise and fall time) — High responsivity (0.85 A/W typical) — Low da rk current s Planar st ructure for high reliability s Wavelength : 1.1µm—1.6 µm s 50 µm core multimode fiber s Wide operating temperature range : –40 °C to +85 °C s Wide bandwidth s Qualification program : Bellcor e TA-NWT-983 The D171-Type PIN Photodetectors feature a rear-illuminated planar diode structure with a low-capacitance 4-mil active area for maximum responsivity and speed.
