1417G5

The 1417G5 is NetLight 1417G5 and 1417H5-Type ATM/SONET/SDH Transceivers with Clock Recovery designed by Agere Systems.

Product Overview

Agere Systems

Datasheet Details

Part number	1417G5
Manufacturer	Agere Systems
File Size	149.43 KB
Description	NetLight 1417G5 and 1417H5-Type ATM/SONET/SDH Transceivers with Clock Recovery
Datasheet	1417G5_AgereSystems.pdf

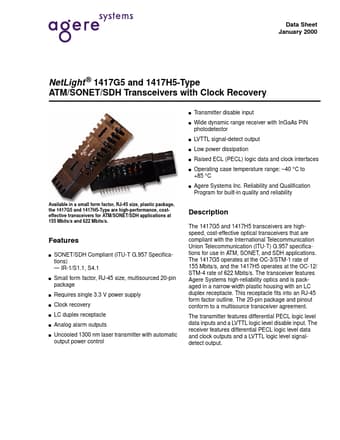

Additional preview pages of the 1417G5 datasheet.

Product details

Description

The 1417G5 and 1417H5 transceivers are highspeed, cost-effective optical transceivers that are compliant with the International Telecommunication Union Telecommunication (ITU-T) G.957 specifications for use in ATM, SONET, and SDH applications.

Features

Agere Systems high-reliability optics and is packaged in a narrow-width plastic housing with an LC duplex receptacle. This receptacle fits into an RJ-45 form factor outline. The 20-pin package and pinout conform to a multisource transceiver agreement. The transmitter features differential PECL logic level data inputs and a LVTTL logic level disable input. The receiver features differential PECL logic level data and clock outputs and a LVTTL logic level signaldetect output. Features s SONET/SDH.
