AA7600SP - Video Signal Switcher

Agamem Microelectronic

The AA7600SP by Agamem Microelectronic is a Video Signal Switcher. Below is the official datasheet preview.

📥 Download Datasheet

AA7600SP Video Signal Switcher by Agamem Microelectronic - Datasheet Preview — Official preview page of the **AA7600SP** Video Signal Switcher datasheet (Agamem Microelectronic).

Datasheet Details

Part number	AA7600SP
Manufacturer	Agamem Microelectronic
File Size	218.14 KB
Description	Video Signal Switcher
Datasheet	AA7600SP_AgamemMicroelectronic.pdf

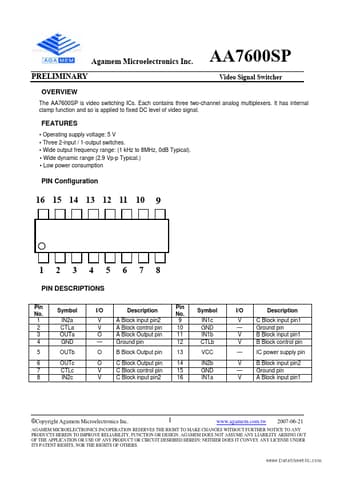

Additional preview pages of the AA7600SP datasheet.

AA7600SP Product details

Description

Pin No. O O V V Description A Block input pin2 A Block control pin A Block Output pin Ground pin B Block Output pin C Block Output pin C Block control pin C Block input pin2 Pin No. V V V V Description C Block input pin1 Ground pin B Block input pin1 B Block control pin IC power supply pin B Block input pin2 Grou

Features

Operating supply voltage: 5 V.
Three 2-input / 1-output switches.
Wide output frequency range: (1 kHz to 8MHz, 0dB Typical).
Wide dynamic range (2.9 Vp-p Typical. ).
Low power consumption PIN Configuration 16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 PIN.
