Part number	MPN7312
Manufacturer	Aeroflex
File Size	161.09 KB
Description	Mesa PIN Diodes
Datasheet	MPN7312 Datasheet
Note	This datasheet PDF includes multiple part numbers: MPN7312, MPN7302. Please refer to the document for exact specifications by model.

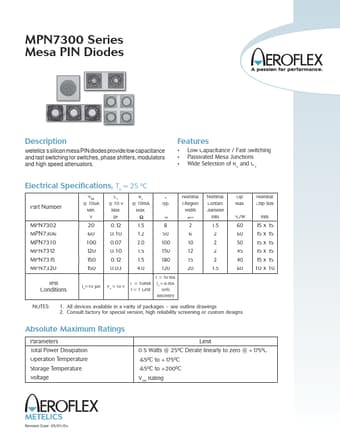

Additional preview pages of the MPN7312 datasheet.

Product details

Description

Metelics’s silicon mesa PIN diodes provide low capacitance and fast switching for switches, phase shifters, modulators and high speed attenuators.

Features

Low Capacitance / Fast Switching.
Passivated Mesa Junctions.
Wide Selection of RS and CJ Electrical Specifications, TA = 25 ºC Part Number VBR @ 10uA Min. V CJ @ 10 V Max. pF RS @ 10mA Max. τ Typ. ns MPN7302 20 0.12 1.5 8 MPN7306 60 0.10 1.2 50 MPN7310 100 0.07 2.0 100 MPN7312 120 0.10 1.5 150 MPN7315 150 0.12 1.5 180 MPN7320 150 0.03 4.0 120 Test Conditions IR=10 µA VR = 10 V IF = 10mA f = 1 GHz IF = 10 mA IR = 6 mA 50% Recovery Nominal I.
