MLP7122, MLP7100 - Silicon Limiter PIN Diode

Name: MLP7122
SKU: MLP7122-1297195

Aeroflex

The MLP7122 by Aeroflex is a Silicon Limiter PIN Diode. Below is the official datasheet preview.

Datasheet Details

Part number	MLP7122, MLP7100
Manufacturer	Aeroflex
File Size	163.51 KB
Description	Silicon Limiter PIN Diode
Datasheet	MLP7100-Aeroflex.pdf
Note	This datasheet PDF includes multiple part numbers: MLP7122, MLP7100. Please refer to the document for exact specifications by model.

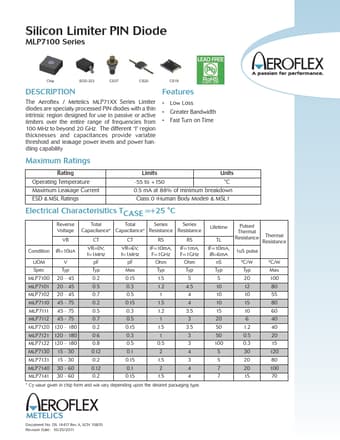

Additional preview pages of the MLP7122 datasheet.

The Aeroflex / Metelics MLP71XX Series Limiter.
Low Loss diodes are specially processed PIN diodes with a thin.
Greater Bandwidth intrinsic region designed for use in passive or active limiters over the entire range of frequencies from.
Fast Turn on Time 100 MHz to beyond 20 GHz. The different “I” region thicknesses and capacitances provide variable threshold and leakage power levels and power handling capability Maximum Ratings Rating Operating Temperature Maximum.
