MBD2057-C18 - Planar Back (Tunnel) Diodes

Product Overview

Aeroflex

Datasheet Details

Part number	MBD2057-C18
Manufacturer	Aeroflex
File Size	671.96 KB
Description	Planar Back (Tunnel) Diodes
Datasheet	MBD2057-C18 Datasheet
Note	This datasheet PDF includes multiple part numbers: MBD2057-C18, MBD1057-C18. Please refer to the document for exact specifications by model.

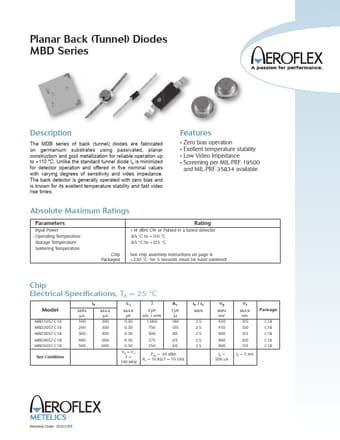

Additional preview pages of the MBD2057-C18 datasheet.

Product details

Description

The MDB series of back (tunnel) diodes are fabricated on germanium substrates using passivated, planar construction and gold metallization for reliable operation up to +110 °C.

Features

Zero bias operation.
Exellent temperature stability.
Low Video Impedance.
Screening per MIL-PRF-19500 and MIL-PRF-35834 available. Absolute Maximum Ratings Parameters Input Power Operating Temperature Storage Temperature Soldering Temperature Chip Packaged Rating +14 dBm CW or Pulsed in a tuned detector -65 °C to +110 °C -65 °C to +125 °C See chip assembly instructions on page 8 +230 °C for 5 seconds (must be hand soldered) Chip Elect.
