ACT-S128K32V - 4 Megabit SRAM Multichip Module

Description

I/O0-31 Data I/O A0 16 Address Inputs WE1 4 Write Enables CE1 4 Chip Enables OE Output Enable Vcc GND NC Power Supply Ground Not Connected

Features

  • s 4 Low Power CMOS 128K x 8 SRAMs in one MCM s Overall configuration as 128K x 32 s Input and Output TTL Compatible s 17, 20, 25, 35, 45 & 55ns Access Times, 15ns Available by Special Order s Full Military (-55°C to +125°C) Temperature Range s +3.3V Power Supply s Choice of Surface Mount or PGA Type Co-fired Packages: q 68.
  • Lead, Dual-Cavity CQFP (F2), .88"SQ x .20"max (.18"max thickness available, contact factory for details) (Drops into the 68 Lead JEDEC .99"SQ CQFJ footprint) q 66.

📥 Download Datasheet

Datasheet Details

Part number ACT-S128K32V
Manufacturer Aeroflex
File Size 116.90 KB
Description 4 Megabit SRAM Multichip Module
Datasheet download datasheet ACT-S128K32V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACT-D1M96S ACT-D1M96S High Speed 96 MegaBit 3.3V Synchronous DRAM Multichip Module Aeroflex Circuit Technology
ACT-PS512K8 ACT-PS512K8 High Speed 4 Megabit Plastic Monolithic SRAM Aeroflex Circuit Technology
ACT102H-600D AC Thyristor power switch WeEn
ACT108-600D AC Thyristor power switch WeEn
ACT108-600E AC Thyristor power switch NXP Semiconductors

Other Datasheets by Aeroflex

Part Number Description
ACT-S512K32V 16 Megabit SRAM Multichip Module
ACT-S512K8 4 Megabit Monolithic SRAM
ACT-SF2816 128K x 16 SRAM / 512K x 16 FLASH Multichip Module
ACT-SF41632 128K x 32 SRAM / 512K x 32 Flash Multichip Module
ACT-SF512K16 High Speed 512K x 16 SRAM/FLASH Multichip Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

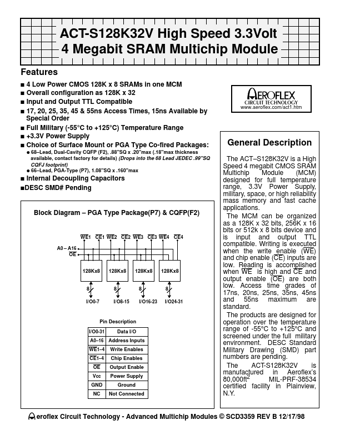

ACT-S128K32V High Speed 3.3Volt 4 Megabit SRAM Multichip Module Features s 4 Low Power CMOS 128K x 8 SRAMs in one MCM s Overall configuration as 128K x 32 s Input and Output TTL Compatible s 17, 20, 25, 35, 45 & 55ns Access Times, 15ns Available by Special Order s Full Military (-55°C to +125°C) Temperature Range s +3.3V Power Supply s Choice of Surface Mount or PGA Type Co-fired Packages: q 68–Lead, Dual-Cavity CQFP (F2), .88"SQ x .20"max (.18"max thickness available, contact factory for details) (Drops into the 68 Lead JEDEC .99"SQ CQFJ footprint) q 66–Lead, PGA-Type (P7), 1.08"SQ x .
