1N746A, 1N755A Silicon Zener Diode

1N746A Description

Silicon Zener Diode Series 1N746 thru 1N759, 1N4370A thru 1N4372A .

1N746A Features

* Available in JAN, JANTX and JANTXV per MIL-PRF-19500/127
* Double Plug Construction
* Metallurgically Bonded
* Also available in DO-213 MELF style package Maximum Ratings Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipatio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N746A, 1N755A. Please refer to the document for exact specifications by model.

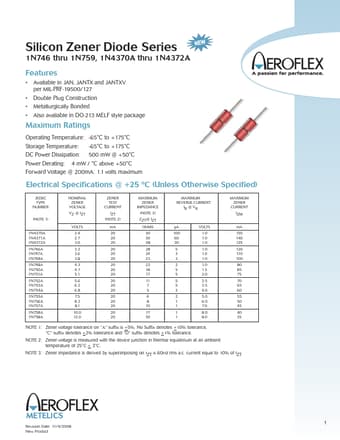

datasheet Preview Page 2

Datasheet Details

Part number
1N746A, 1N755A
Manufacturer
Aeroflex
File Size
134.12 KB
Datasheet
1N755A-Aeroflex.pdf
Description
Silicon Zener Diode
Note
This datasheet PDF includes multiple part numbers: 1N746A, 1N755A.
Please refer to the document for exact specifications by model.
