1N5546B-1

The 1N5546B-1 is Low Noise Zener Diode designed by Aeroflex.

Product Overview

Aeroflex

Part number	1N5546B-1, 1N5518B-1
Manufacturer	Aeroflex
File Size	168.12 KB
Description	Low Noise Zener Diode
Datasheet	1N5518B-1-Aeroflex.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5546B-1, 1N5518B-1. Please refer to the document for exact specifications by model.

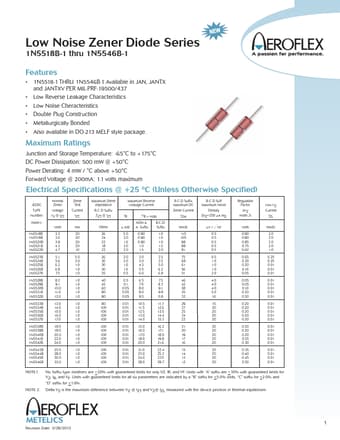

Additional preview pages of the 1N5546B-1 datasheet.

1N5518-1 THRU 1N5546B-1 Available in JAN, JANTX and JANTXV PER MIL-PRF-19500/437.
Low Reverse Leakage Characteristics.
Low Noise Cheracteristics.
Double Plug Construction.
Metallurgically Bonded.
Also available in DO-213 MELF style package. Maximum Ratings Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500 mW @ +50°C Power Derating: 4 mW / °C above +50°C Forward Voltage @ 200mA: 1.1 volts maximum Electrical Specifica.
