1N5449 - Silicon Abrupt Varactors

Download the 1N5449 datasheet PDF. This datasheet also covers the 1N5441 variant, as both devices belong to the same silicon abrupt varactors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5441-Aeroflex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5449
Manufacturer Aeroflex
File Size 49.92 KB
Description Silicon Abrupt Varactors
Datasheet download datasheet 1N5449 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N5449 GENERAL PURPOSE ABRUPT VARACTOR DIODES Knox Semiconductor Inc
1N5449A SILICON EPICAP DIODES ETC
1N5441 GENERAL PURPOSE ABRUPT VARACTOR DIODES Knox Semiconductor Inc
1N5441A SILICON EPICAP DIODES ETC
1N5442 GENERAL PURPOSE ABRUPT VARACTOR DIODES Knox Semiconductor Inc

Other Datasheets by Aeroflex

Part Number Description
1N5441 Silicon Abrupt Varactors
1N5442 Silicon Abrupt Varactors
1N5443 Silicon Abrupt Varactors
1N5444 Silicon Abrupt Varactors
1N5445 Silicon Abrupt Varactors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

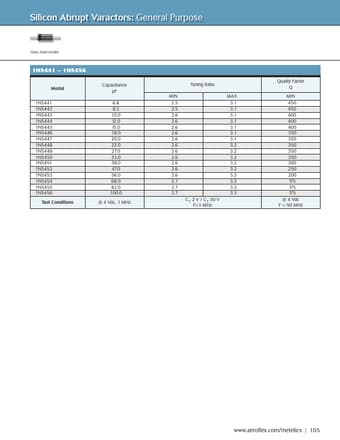

Silicon Abrupt Varactors: General Purpose Glass Axial Leaded 1N5441 — 1N5456 Model 1N5441 1N5442 1N5443 1N5444 1N5445 1N5446 1N5447 1N5448 1N5449 1N5450 1N5451 1N5452 1N5453 1N5454 1N5455 1N5456 Test Conditions Capacitance pF 6.8 8.2 10.0 12.0 15.0 18.0 20.0 22.0 27.0 33.0 39.0 47.0 56.0 68.0 82.0 100.0 @ 4 Vdc, 1 MHz Tuning Ratio MIN 2.5 2.5 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.7 2.7 2.7 Ct 2 V / C t 30 V F=1-MHz MAX 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.2 3.2 3.2 3.2 3.2 3.3 3.3 3.3 3.3 Quality Factor Q MIN 450 450 400 400 400 350 350 350 350 350 300 250 200 175 175 175 @ 4 Vdc F = 50 MHz www.aeroflex.
