1N5300-1 - Current Regulator Diode

Download the 1N5300-1 datasheet PDF. This datasheet also covers the 1N5283-1 variant, as both devices belong to the same current regulator diode family and are provided as variant models within a single manufacturer datasheet.

Description

The popular 1N5283-1 thru 1N5314-1 and 1N7041-1 thru 1N7055-1 series of 0.5 watt current regulators provides a selection from 0.22 mA to 10 mA in standard 10% tolerances.

Features

  • High source impedance.
  • Internal metallurgical bond.
  • JAN, JANTX, JANTXV and JANS qualification per MIL-PRF-19500/463 available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5283-1-Aeroflex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5300-1
Manufacturer Aeroflex
File Size 472.92 KB
Description Current Regulator Diode
Datasheet download datasheet 1N5300-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N5300-1 CURRENT REGULATOR DIODES Compensated Deuices Incorporated
1N5300-1 0.5W Current Regulators VPT
1N5300-1 CURRENT REGULATOR DIODES Microsemi
1N5300-1 0.5W Current Regulators MA-COM
1N5300 CURRENT REGULATOR DIODES Motorola Inc

Other Datasheets by Aeroflex

Part Number Description
1N5301-1 Current Regulator Diode
1N5302-1 Current Regulator Diode
1N5303-1 Current Regulator Diode
1N5304-1 Current Regulator Diode
1N5305-1 Current Regulator Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

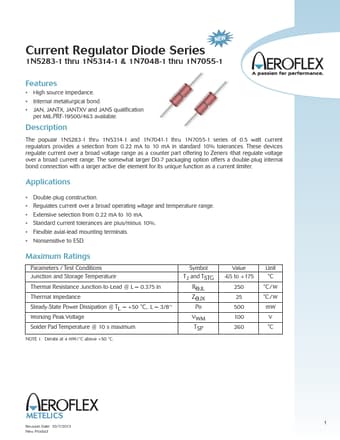

Current Regulator Diode Series 1N5283-1 thru 1N5314-1 & 1N7048-1 thru 1N7055-1 Features • High source impedance. • Internal metallurgical bond. • JAN, JANTX, JANTXV and JANS qualification per MIL-PRF-19500/463 available. Description The popular 1N5283-1 thru 1N5314-1 and 1N7041-1 thru 1N7055-1 series of 0.5 watt current regulators provides a selection from 0.22 mA to 10 mA in standard 10% tolerances. These devices regulate current over a broad voltage range as a counter part offering to Zeners (that regulate voltage over a broad current range. The somewhat larger D0-7 packaging option offers a double-plug internal bond connection with a larger active die element for its unique function as a current limiter. Applications • Double-plug construction.
