1N4123UR-1 - Low Noise Zener Diode

Download the 1N4123UR-1 datasheet PDF. This datasheet also covers the 1N4614UR-1 variant, as both devices belong to the same low noise zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/435.
  • Tight tolerences available in plus or minus 2% or 1% with C or D suffix respectively. Maximum Ratings.
  • 500 mW power handling.
  • Hermetically sealed MELF DO-213 package.
  • Also available in axial-leaded glass DO-35 style package. Operating & Storage Temperature: -65 to +175 °C Thermal Resistance: 250 °C/W Steady-State Power: 0.5 watts Foward Voltage @200 MA: 1.1 V Electrical Speci.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4614UR-1-Aeroflex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4123UR-1
Manufacturer Aeroflex
File Size 142.31 KB
Description Low Noise Zener Diode
Datasheet download datasheet 1N4123UR-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4123UR-1 Low Noise Zener Diode MA-COM
1N4123UR-1 Low Noise Zener Diode VPT
1N4123UR-1 METALLURGICALLY BONDED GLASS SURFACE MOUNT 0.5 WATT ZENERS Microsemi
1N4123UR GLASS SURFACE MOUNT 0.5 WATT ZENERS Microsemi
1N4123UR ZENER DIODES Digitron Semiconductors

Other Datasheets by Aeroflex

Part Number Description
1N4123 Silicon Zener Diode
1N4123-1 Low Noise Zener Diode
1N4120 Silicon Zener Diode
1N4120-1 Low Noise Zener Diode
1N4120UR-1 Low Noise Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

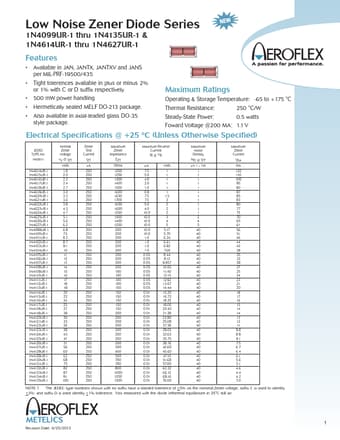

Low Noise Zener Diode Series 1N4099UR-1 thru 1N4135UR-1 & 1N4614UR-1 thru 1N4627UR-1 Features • Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/435 • Tight tolerences available in plus or minus 2% or 1% with C or D suffix respectively. Maximum Ratings • 500 mW power handling • Hermetically sealed MELF DO-213 package. • Also available in axial-leaded glass DO-35 style package. Operating & Storage Temperature: -65 to +175 °C Thermal Resistance: 250 °C/W Steady-State Power: 0.5 watts Foward Voltage @200 MA: 1.1 V Electrical Specifications @ +25 ºC (Unless Otherwise Specified) JEDEC TYPE No.
