1N4119-1 - Low Noise Zener Diode

Download the 1N4119-1 datasheet PDF. This datasheet also covers the 1N4614-1 variant, as both devices belong to the same low noise zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/435.
  • Tight tolerences available in plus or minus 2% or 1% with C or D suffix respectively.
  • 500 mW power handling.
  • Hermetically sealed axial-leaded glass DO-35 package.
  • Also available in DO-213 MELF style package. Maximum Ratings Operating & Storage Temperature: -65 to +175°C Thermal Resistance: 250°C/W Steady-State Power: 0.5 watts Foward Voltage @200 MA: 1.1 V Electrical Specific.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4614-1-Aeroflex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4119-1
Manufacturer Aeroflex
File Size 175.65 KB
Description Low Noise Zener Diode
Datasheet download datasheet 1N4119-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4119-1 500mW Zener Voltage Regulator SENSITRON SEMICONDUCTOR
1N4119-1 Low Noise Zener Diode MA-COM
1N4119-1 500mW Metallurgically Bonded Glass Zener Diodes Microsemi
1N4119-1 Low Noise Zener Diode VPT
1N4119 SILICON ZENER DIODE Central Semiconductor

Other Datasheets by Aeroflex

Part Number Description
1N4119 Silicon Zener Diode
1N4119UR-1 Low Noise Zener Diode
1N4110 Silicon Zener Diode
1N4110-1 Low Noise Zener Diode
1N4110UR-1 Low Noise Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

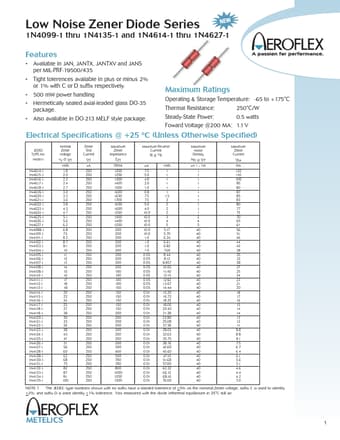

Low Noise Zener Diode Series 1N4099-1 thru 1N4135-1 and 1N4614-1 thru 1N4627-1 Features • Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/435 • Tight tolerences available in plus or minus 2% or 1% with C or D suffix respectively. • 500 mW power handling • Hermetically sealed axial-leaded glass DO-35 package. • Also available in DO-213 MELF style package. Maximum Ratings Operating & Storage Temperature: -65 to +175°C Thermal Resistance: 250°C/W Steady-State Power: 0.5 watts Foward Voltage @200 MA: 1.1 V Electrical Specifications @ +25 ºC (Unless Otherwise Specified) JEDEC TYPE No.
