VRG8654, VRG8653 - Dual Voltage Regulator

Aeroflex Circuit Technology

📥 Download Datasheet

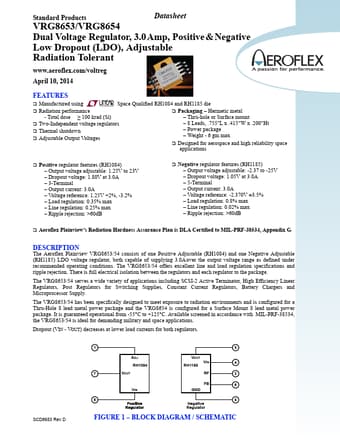

VRG8654 Datasheet Preview — This datasheet PDF includes multiple part numbers: VRG8654, VRG8653. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VRG8654, VRG8653
Manufacturer	Aeroflex Circuit Technology
File Size	456.73 KB
Description	Dual Voltage Regulator
Datasheet	VRG8653-AeroflexCircuitTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: VRG8654, VRG8653. Please refer to the document for exact specifications by model.

VRG8654 Product details

Description

The Aeroflex Plainview VRG8653/54 consists of one Positive Adjustable (RH1084) and one Negative Adjustable (RH1185) LDO voltage regulator, both capable of supplying 3.0Aover the output voltage range as defined under recommended operating conditions.

Features

 Manufactured using Space Qualified RH1084 and RH1185 die  Radiation performance - Total dose > 100 krad (Si)  Two-Independent voltage regulators  Thermal shutdown  Adjustable Output Voltages  Packaging.
Hermetic metal.
Thru-hole or Surface mount.
8 Leads, .755"L x .415"W x .200"Ht.
Power package.
Weight - 6 gm max  Designed for aerospace and high reliability space.
