VRG8610, VRG8609 - Dual Adjustable Negative Voltage Regulators

Aeroflex Circuit Technology

📥 Download Datasheet

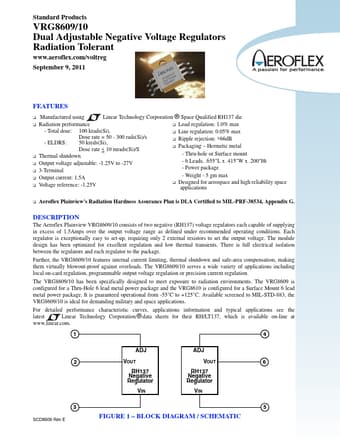

VRG8610 Datasheet Preview — This datasheet PDF includes multiple part numbers: VRG8610, VRG8609. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VRG8610, VRG8609
Manufacturer	Aeroflex Circuit Technology
File Size	110.18 KB
Description	Dual Adjustable Negative Voltage Regulators
Datasheet	VRG8609-AeroflexCircuitTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: VRG8610, VRG8609. Please refer to the document for exact specifications by model.

VRG8610 Product details

Description

The Aeroflex Plainview VRG8609/10 consists of two negative (RH137) voltage regulators each capable of supplying in excess of 1.5Amps over the output voltage range as defined under recommended operating conditions.

Features

❑ Manufactured using Linear Technology Corporation ® Space Qualified RH137 die ❑ Radiation performance ❑ Load regulation: 1.0% max - Total dose: 100 krads(Si), Dose rate = 50 - 300 rads(Si)/s - ELDRS: 50 kreds(Si), Dose rate < 10 mrads(Si)/S ❑ Thermal shutdown ❑ Output voltage adjustable: -1.25V to -27V ❑ 3-Terminal ❑ Output current: 1.5A ❑ Voltage reference: -1.25V ❑ Line regulation: 0.05% max ❑ Ripple rejection: >66dB ❑ Packaging.
Hermetic metal - Thru-hole or Surface mount - 6.
