UT54ACS244 - Octal Buffers & Line Drivers

Aeroflex Circuit Technology

The UT54ACS244 by Aeroflex Circuit Technology is a Octal Buffers & Line Drivers. Below is the official datasheet preview.

📥 Download Datasheet

UT54ACS244 Octal Buffers & Line Drivers by Aeroflex Circuit Technology - Datasheet Preview — Official preview page of the **UT54ACS244** Octal Buffers & Line Drivers datasheet (Aeroflex Circuit Technology).

Datasheet Details

Part number	UT54ACS244
Manufacturer	Aeroflex Circuit Technology
File Size	223.25 KB
Description	Octal Buffers & Line Drivers
Datasheet	UT54ACS244-AeroflexCircuitTechnology.pdf

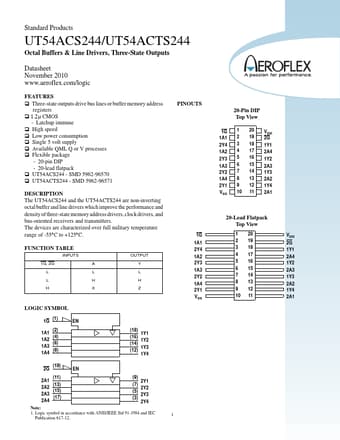

Additional preview pages of the UT54ACS244 datasheet.

UT54ACS244 Product details

Description

The UT54ACS244 and the UT54ACTS244 are non-inverting octal buffer and line drivers which improve the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Features

Three-state outputs drive bus lines or buffer memory address registers 1.2μ CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible package - 20-pin DIP - 20-lead flatpack UT54ACS244 - SMD 5962-96570 UT54ACTS244 - SMD 5962-96571.
