UT54ACS162245SLV - Schmitt CMOS 16-bit Bidirectional MultiPurpose Low Voltage Transceiver

Description

age transceiver is built using Aeroflex’s epitaxial CMOS technology and is ideal for space applications.

Features

  • Voltage translation - 3.3V bus to 2.5V bus - 2.5V bus to 3.3V bus.
  • Cold sparing all pins.
  • 0.25μ CMOS.
  • Operational environment - Total dose: 300Krad(Si) and 1Mrad(Si) - Single Event Latchup immune.
  • High speed, low power consumption.
  • Schmitt trigger inputs to filter noisy signals.
  • Cold and Warm Spare - all outputs.
  • Available QML Q or V processes.
  • Standard Microcircuit Drawing 5962-02543.
  • Package: - 48-lead f.

📥 Download Datasheet

Datasheet Details

Part number UT54ACS162245SLV
Manufacturer Aeroflex Circuit Technology
File Size 187.37 KB
Description Schmitt CMOS 16-bit Bidirectional MultiPurpose Low Voltage Transceiver
Datasheet download datasheet UT54ACS162245SLV Datasheet

📁 Similar Datasheet

  • UT54ACS10 - triple three-input NAND gates (ETC)
  • UT54ACS11 - triple three-input AND gates (ETC)
  • UT54ACS132 - Radiation-Hardened Quadruple 2-Input NAND Schmitt Triggers (Aeroflex Microelectronic Solutions)
  • UT54ACS132 - Radiation-Hardened Quadruple 2-Input NAND Schmitt Triggers (ETC)
  • UT54ACS138 - 3-Line to 8-Line Decoders/Demultiplexers (ETC)
  • UT54ACS139 - UT54ACS139/UT54ACTS139 (ETC)
  • UT54ACS14 - Hex Inverting Schmitt Triggers (ETC)
  • UT54ACS151 - 1 of 8 data selector/multiplexer (ETC)
  • UT54ACS157 - Quadrouple 2 to 1 Multiplexers (ETC)
  • UT54ACS191 - Synchronous 4-Bit Up-Down Binary Counters (ETC)
Other Datasheets by Aeroflex Circuit Technology

Full PDF Text Transcription

Click to expand full text

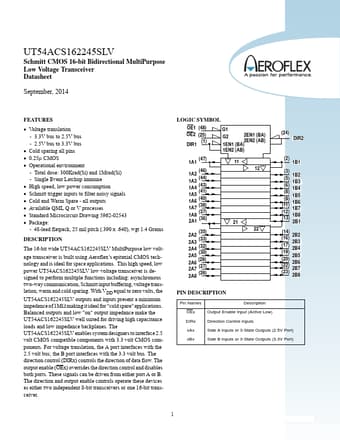

UT54ACS162245SLV Schmitt CMOS 16-bit Bidirectional MultiPurpose Low Voltage Transceiver Datasheet September, 2014 FEATURES • Voltage translation - 3.3V bus to 2.5V bus - 2.5V bus to 3.3V bus • Cold sparing all pins • 0.25μ CMOS • Operational environment - Total dose: 300Krad(Si) and 1Mrad(Si) - Single Event Latchup immune • High speed, low power consumption • Schmitt trigger inputs to filter noisy signals • Cold and Warm Spare - all outputs • Available QML Q or V processes • Standard Microcircuit Drawing 5962-02543 • Package: - 48-lead flatpack, 25 mil pitch (.390 x .640), wgt 1.4 Grams DESCRIPTION The 16-bit wide UT54ACS162245SLV MultiPurpose low volt- age transceiver is built using Aeroflex’s epitaxial CMOS technology and is ideal for space applications.
