CT2511 - Dual Redundant Remote Terminal

Aeroflex Circuit Technology

The CT2511 by Aeroflex Circuit Technology is a Dual Redundant Remote Terminal. Below is the official datasheet preview.

📥 Download Datasheet

CT2511 Dual Redundant Remote Terminal by Aeroflex Circuit Technology - Datasheet Preview — Official preview page of the CT2511 Dual Redundant Remote Terminal datasheet (Aeroflex Circuit Technology).

Datasheet Details

Part number	CT2511
Manufacturer	Aeroflex Circuit Technology
File Size	257.49 KB
Description	Dual Redundant Remote Terminal
Datasheet	CT2511_AeroflexCircuitTechnology.pdf

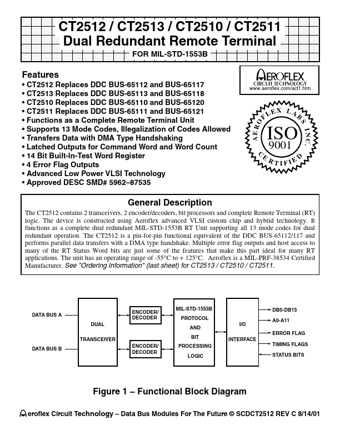

Additional preview pages of the CT2511 datasheet.

CT2511 Product details

Description

The CT2512 contains 2 transceivers, 2 encoder/decoders, bit processors and complete Remote Terminal (RT) logic.

Features

CT2512 Replaces DDC BUS-65112 and BUS-65117.
CT2513 Replaces DDC BUS-65113 and BUS-65118.
CT2510 Replaces DDC BUS-65110 and BUS-65120.
CT2511 Replaces DDC BUS-65111 and BUS-65121.
Functions as a Complete Remote Terminal Unit.
Supports 13 Mode Codes, Illegalization of Codes Allowed.
Transfers Data with DMA Type Handshaking.
Latched Outputs for Command Word and Word Count.
14 Bit Built-ln-Test Word Register.
