CT19901 - MIL-STD-1553B Remote Terminal/ Bus Controller/ or Passive Monitor Hybrid with Status Word Control

Product Overview

Aeroflex Circuit Technology

Part number	CT19901
Manufacturer	Aeroflex Circuit Technology
File Size	232.01 KB
Description	MIL-STD-1553B Remote Terminal/ Bus Controller/ or Passive Monitor Hybrid with Status Word Control
Datasheet	CT19901 Datasheet

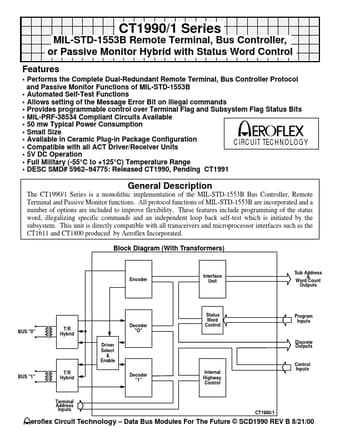

Additional preview pages of the CT19901 datasheet.

The CT1990/1 Series is a monolithic implementation of the MIL-STD-1553B Bus Controller, Remote Terminal and Passive Monitor functions.

Performs the Complete Dual-Redundant Remote Terminal, Bus Controller Protocol and Passive Monitor Functions of MIL-STD-1553B.
Automated Self-Test Functions.
Allows setting of the Message Error Bit on illegal commands.
Provides programmable control over Terminal Flag and Subsystem Flag Status Bits.
MIL-PRF-38534 Compliant Circuits Available.
50 mw Typical Power Consumption.
Small Size.
Available in Ceramic Plug-in Package Co.
