CT1698 - CT1698 MIL-STD-1397 Type E 10MHz Low Level Serial Interface

Aeroflex Circuit Technology

The CT1698 by Aeroflex Circuit Technology is a CT1698 MIL-STD-1397 Type E 10MHz Low Level Serial Interface. Below is the official datasheet preview.

📥 Download Datasheet

CT1698 CT1698 MIL-STD-1397 Type E 10MHz Low Level Serial Interface by Aeroflex Circuit Technology - Datasheet Preview — Official preview page of the **CT1698** CT1698 MIL-STD-1397 Type E 10MHz Low Level Serial Interface datasheet (Aeroflex Circuit Technology).

Datasheet Details

Part number	CT1698
Manufacturer	Aeroflex Circuit Technology
File Size	82.77 KB
Description	CT1698 MIL-STD-1397 Type E 10MHz Low Level Serial Interface
Datasheet	CT1698_AeroflexCircuitTechnology.pdf

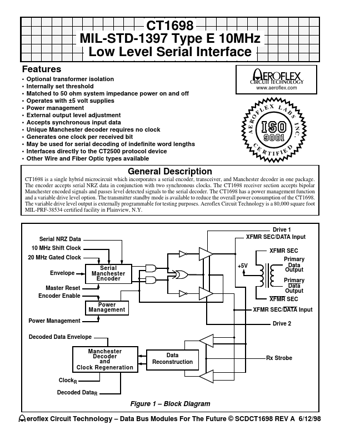

Additional preview pages of the CT1698 datasheet.

CT1698 Product details

Description

CT1698 is a single hybrid microcircuit which incorporates a serial encoder, transceiver, and Manchester decoder in one package.

Features

Optional transformer isolation Internally set threshold Matched to 50 ohm system impedance power on and off Operates with ±5 volt supplies Power management External output level adjustment Accepts synchronous input data Unique Manchester decoder requires no clock Generates one clock per received bit May be used for serial decoding of indefinite word lengths Interfaces directly.
