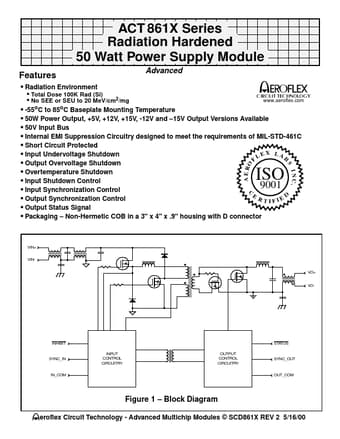

ACT8612, Radiation Hardened 50W Power-Supply

Aeroflex’s ACT861X series of power supply modules are radiation hardened 50 Watt units designed for use in space applications.

Using a double ended forward topology with synchronous rectifiers achieves high efficiency, and the use of Chip-On-Board (COB) construction together with planar magnetics al

ACT8612 Features

* s Advanced CIRCUIT TECHNOLOGY www.aeroflex.com Radiation Environment q q Total Dose 100K Rad (Si) No SEE or SEU to 20 MeV/cm2/mg to Baseplate Mounting Temperature 50W Power Output, +5V, +12V, +15V, -12V and

* 15V Output Versions Available s 50V Input Bus s Internal EMI Suppression Circuit
