ACT4419D - Dual Variable Amplitude Transceiver

Aeroflex Circuit Technology

📥 Download Datasheet

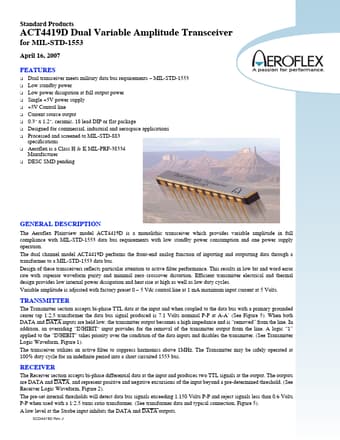

ACT4419D Datasheet Preview — Preview of ACT4419D PDF

Datasheet Details

Part number	ACT4419D
Manufacturer	Aeroflex Circuit Technology
File Size	173.33 KB
Description	Dual Variable Amplitude Transceiver
Datasheet	ACT4419D_AeroflexCircuitTechnology.pdf

ACT4419D Product details

Description

The Aeroflex Plainview model ACT4419D is a monolithic transceiver which provides variable amplitude in full compliance with MIL-STD-1553 data bus requirements with low standby power consumption and one power supply operation.

Features

❑ Dual transceiver meets military data bus requirements.
MIL-STD-1553 ❑ Low standby power ❑ Low power dissipation at full output power ❑ Single +5V power supply ❑ +5V Control line ❑ Current source output ❑ 0.3" x 1.2", ceramic, 18 lead DIP or flat package ❑ Designed for commercial, industrial and aerospace.
