AD1117 - 1A Low Dropout Regulator SCSI-II Acrive Treminator

Advanced

The AD1117 by Advanced is a 1A Low Dropout Regulator SCSI-II Acrive Treminator. Below is the official datasheet preview.

📥 Download Datasheet

AD1117 1A Low Dropout Regulator SCSI-II Acrive Treminator by Advanced - Datasheet Preview — Official preview page of the **AD1117** 1A Low Dropout Regulator SCSI-II Acrive Treminator datasheet (Advanced).

Datasheet Details

Part number	AD1117
Manufacturer	Advanced
File Size	493.64 KB
Description	1A Low Dropout Regulator SCSI-II Acrive Treminator
Datasheet	AD1117_Advanced.pdf

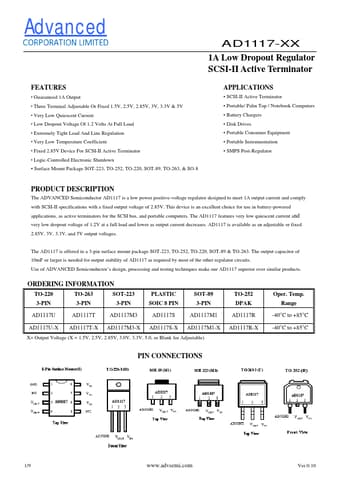

Additional preview pages of the AD1117 datasheet.

AD1117 Product details

Description

The ADVANCED Semiconductor AD1117 is a low power positive-voltage regulator designed to meet 1A output current and comply with SCSI-II specifications with a fixed output voltage of 2.85V.

Features

Guaranteed 1A Output.
Three Terminal Adjustable Or Fixed 1.5V, 2.5V, 2.85V, 3V, 3.3V & 5V.
Very Low Quiescent Current.
Low Dropout Voltage Of 1.2 Volts At Full Load.
Extremely Tight Load And Line Regulation.
Very Low Temperature Coefficient.
Fixed 2.85V Device For SCSI-II Active Terminator.
Logic-Controlled Electronic Shutdown.
Surface Mount Package SOT-223, TO-252, TO-220, SOT-89, TO-263, & SO-8.
