DME2333-230 - SCHOTTKY MEDIUM BARRIER DIODE

Description

The ASI DME2333-230 is a Medium Barrier Schottky Diode designed for General Purpose Mixer Applications.

📥 Download Datasheet

Datasheet Details

Part number DME2333-230
Manufacturer Advanced Semiconductor
File Size 53.90 KB
Description SCHOTTKY MEDIUM BARRIER DIODE
Datasheet download datasheet DME2333-230 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DME2333-230 Silicon Beam-Lead Schottky Mixer Diodes Skyworks
DME2333-220 Silicon Beam-Lead Schottky Mixer Diodes Skyworks
DME2333-250 Silicon Beam-Lead Schottky Mixer Diodes Skyworks
DME2333-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices Skyworks
DME2029-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices Skyworks

Other Datasheets by Advanced Semiconductor

Part Number Description
DME3057 SCHOTTKY MEDIUM BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

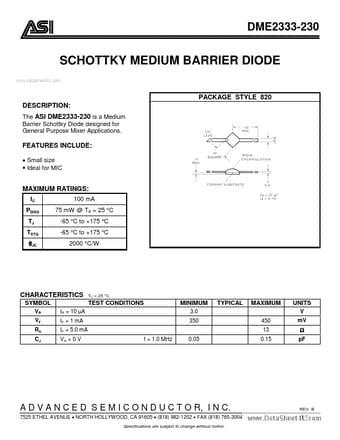

DME2333-230 SCHOTTKY MEDIUM BARRIER DIODE www.datasheet4u.com PACKAGE STYLE 820 DESCRIPTION: The ASI DME2333-230 is a Medium Barrier Schottky Diode designed for General Purpose Mixer Applications. FEATURES INCLUDE: • Small size • Ideal for MIC MAXIMUM RATINGS: IC PDISS TJ TSTG θJC 100 mA 75 mW @ TA = 25 °C -65 °C to +175 °C -65 °C to +175 °C 2000 °C/W NONE CHARACTERISTICS SYMBOL VB VF RS CJ IR = 10 µA IF = 1 mA IF = 5.0 mA VR = 0 V TC = 25 °C TEST CONDITIONS MINIMUM 3.0 350 f = 1.0 MHz 0.05 TYPICAL MAXIMUM 450 13 0.15 UNITS V mV Ω pF A D V A N C E D S E M I C O N D U C T O R, I N C. 7525 ETHEL AVENUE • NORTH HOLLYWOOD, CA 91605 • (818) 982-1202 • FAX (818) 765-3004 Specifications are subject to change without notice. REV.
