| Part number | BFT51F.A, BFT51F-A |
|---|---|
| Manufacturer | Advanced Semiconductor |
| File Size | 53.27 KB |
| Description | NPN Silicon High Frequency Transistor |
| Datasheet |
 BFT51F-A_AdvancedSemiconductor.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: BFT51F.A, BFT51F-A. Please refer to the document for exact specifications by model. |

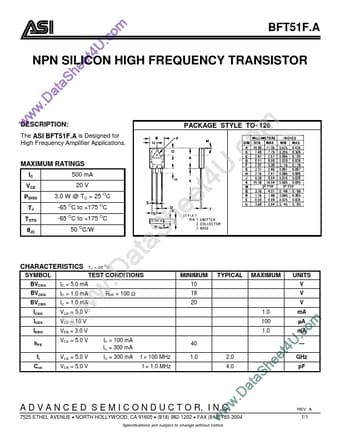

w The ASI BFT51F.A is Designed for High Frequency Amplifier Applications..D a t a e h S PACKAGE STYLE TO- 126 MAXIMUM RATINGS IC VCE PDISS TJ TSTG θJC O O 500 mA 20 V 3.0 W @ TC = 25 C -65 C to +175 C -65 C to +175 C 50 C/W O O O O CHARACTERISTICS SYMBOL BVCEO BVCER BVCBO ICEO ICES IEBO hFE ft Cob TC = 25 C O TEST CONDITIONS IC = 5.0 mA IC = 1.0 mA IC = 1.0 mA VCE = 5.0 V VCE = 10 V VEB = 3.0 V VCE = 5.0 V VCE = 5.0 V VCB = 5.0 V IC = 100 mA IC = 300 mA IC = 300 mA f = 100 MHz f = 1.
