APTM20DUM04 - MOSFET Power Module

Product Overview

Advanced Power Technology

📥 Download Datasheet

APTM20DUM04 MOSFET Power Module by Advanced Power Technology - Datasheet Preview — Datasheet preview – APTM20DUM04

Datasheet Details

Part number	APTM20DUM04
Manufacturer	Advanced Power Technology
File Size	310.98 KB
Description	MOSFET Power Module
Datasheet	APTM20DUM04 Datasheet

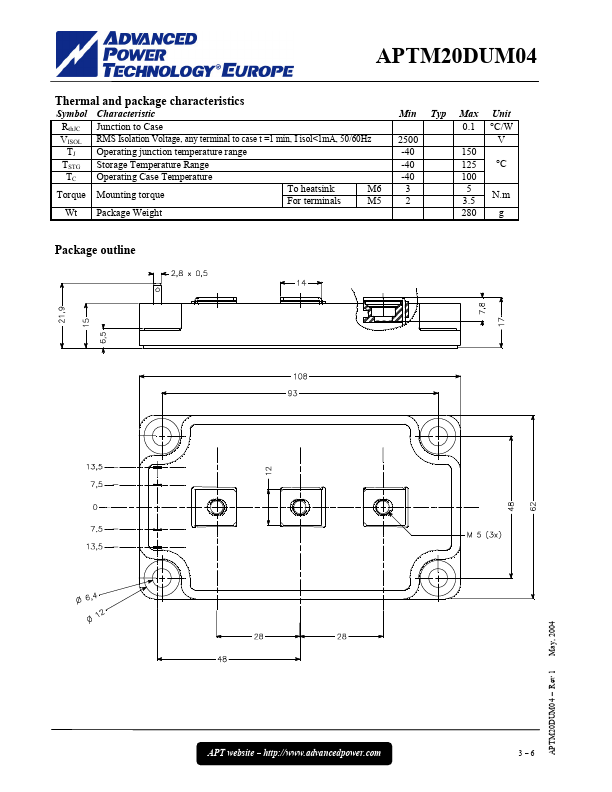

Additional preview pages of the APTM20DUM04 datasheet.

Product details

Features

Power MOS 7® MOSFETs - Low RDSon - Low input and Miller capacitance - Low gate charge - Avalanche energy rated - Very rugged.
Kelvin source for easy drive.
Very low stray inductance - Symmetrical design - M5 power connectors.
High level of integration Benefits.
Outstanding performance at high frequency operation.
Direct mounting to heatsink (isolated package).
Low junction to case thermal resistance.
Low profile www. DataSheet4U. com G1 S1 D1 S D2 S2.
