AP73T03AGMT-HF N-CHANNEL INSULATED GATE BIPOLAR TRANSISTOR

Advanced Power Electronics

Description

Advanced Power Electronics Corp.AP73T03AGMT-HF Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D BVDSS ▼ .
AP73T03A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switchi.

📥 Download Datasheet

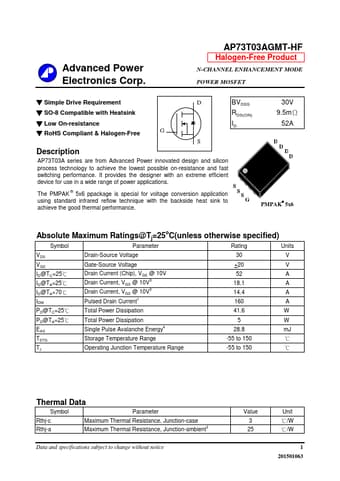

AP73T03AGMT-HF Datasheet Preview — Preview of AP73T03AGMT-HF PDF

Datasheet Specifications

Part number: AP73T03AGMT-HF
Manufacturer: Advanced Power Electronics
File Size: 48.28 KB
Datasheet: AP73T03AGMT-HF-AdvancedPowerElectronics.pdf
Description: N-CHANNEL INSULATED GATE BIPOLAR TRANSISTOR

Applications

* The PMPAK ® 5x6 ppackage is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. S S S G 30V 9.5mΩ 52A D D D D PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Para
