AP20T15GM-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Description

AP20T15 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance.

It provides the designer with an extreme efficient device for use in a wide range of power applications.

📥 Download Datasheet

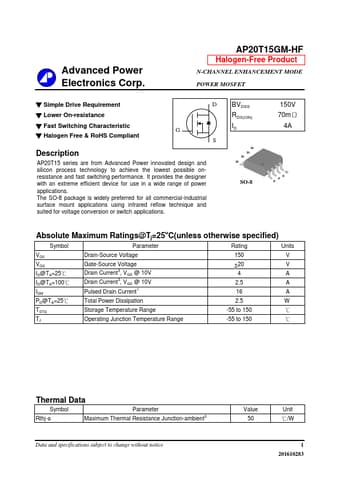

Datasheet preview – AP20T15GM-HF

📁 Similar Datasheet

  • AP200-B10 - AC Current transducer AP-B10 (LEM)
  • AP200-B420L - AC Current transducer AP-B420L (LEM)
  • AP2000 - Micropower Synchronous Step-Up Converter (Chipown)
  • AP2001 - MONOLITHIC DUAL CHANNEL PWM CONTROLLER (Diodes Incorporated)
  • AP2001 - Monolithic Dual Channel PWM Controller (Anachip)
  • AP2002 - Synchronous PWM Controller (Anachip)
  • AP2002 - 1.2MHz 1V Low Input Voltage Synch Step-Up Converter (Chipown)
  • AP2003 - Synchronous PWM Controller (Anachip)
  • AP2004 - PWM BUCK CONTROLLER (Diodes Incorporated)
  • AP2004 - PWM Buck Controller (Anachip)
Other Datasheets by Advanced Power Electronics

Full PDF Text Transcription

Click to expand full text
Advanced Power Electronics Corp. AP20T15GM-HF Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Fast Switching Characteristic ▼ Halogen Free & RoHS Compliant D G S Description AP20T15 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID D D D D SO-8 150V 70mΩ 4A G SS S Absolute Maximum Ratings@Tj=25oC.
