PDB-C134F - Plastic Photodiode Package

Advanced Photonix

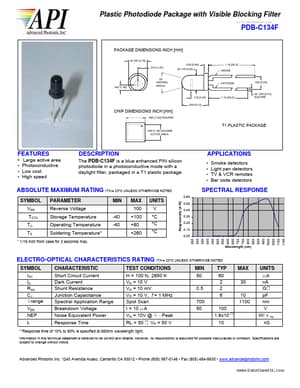

PDB-C134F Datasheet Preview — Preview of PDB-C134F PDF

Datasheet Details

Part number	PDB-C134F
Manufacturer	Advanced Photonix
File Size	113.05 KB
Description	Plastic Photodiode Package
Datasheet	PDB-C134F_AdvancedPhotonix.pdf

PDB-C134F Product details

Description

The PDB-C134F is a blue enhanced PIN silicon photodiode in a photoconductive mode with a daylight filter, packaged in a T1 plastic package. Smoke detectors Light pen detectors TV & VCR remotes Bar code detectors ABSOLUTE MAXIMUM RATING (TA)= 23°C UNLESS OTHERWISE NOTED Responsivity (A/W) SPECTRAL RESPONSE 0.60 0.50 0.40 0.30 0.20 0.10 0.00 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 Wavelength (nm) 1150 SYMBO

Features

Large active area Photoconductive Low cost High speed.
