AMS78L5S, AMS78L033N - 100mA VOLTAGE REGULATOR

AMS78L5S Description

Advanced Monolithic Systems .
The AMS78LXX series consists of positive fixed voltage regulators ideally suited for use in battery-powered systems.

AMS78L5S Features

* 3.3V, 5.0V and 6.2V Output Voltage Available
* Output Voltage Tolerance of ±5% Over Temperature
* Output Current in excess of 100mA
* Internal Thermal Overload Protection
* Overvoltage Protection
* Short Circuit protection
* TO-92, SO-8

AMS78L5S Applications

* Battery Powered Systems
* Portable Consumer Equipment
* Cordless Telephones
* Portable (Notebook) Computers
* Portable Instrumentation
* Radio Control Systems

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AMS78L5S, AMS78L033N. Please refer to the document for exact specifications by model.

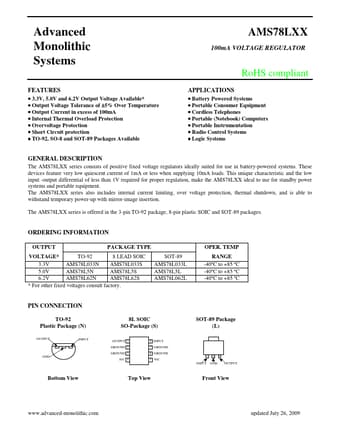

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS78L5S, AMS78L033N
Manufacturer
Advanced Monolithic Systems
File Size
69.71 KB
Datasheet
AMS78L033N-AdvancedMonolithicSystems.pdf
Description
100mA VOLTAGE REGULATOR
Note
This datasheet PDF includes multiple part numbers: AMS78L5S, AMS78L033N.
Please refer to the document for exact specifications by model.
