ALD1103 DUAL N-CHANNEL AND DUAL P-CHANNEL MATCHED MOSFET PAIR

ALD1103 Description

ADVANCED LINEAR DEVICES, INC.ALD1103 DUAL N-CHANNEL AND DUAL P-CHANNEL MATCHED MOSFET PAIR GENERAL .
The ALD1103 is a monolithic dual N-channel and dual P-channel matched transistor pair intended for a broad range of analog applications.

ALD1103 Features

* Thermal tracking between N-channel and P-channel pairs
* Low threshold voltage of 0.7V for both N-channel & P-channel MOSFETS
* Low input capacitance
* Low Vos
* 10mV
* High input impedance
* 1013Ω typical
* Low input and output leaka

ALD1103 Applications

* These enhancement-mode transistors are manufactured with Advanced Linear Devices' enhanced ACMOS silicon gate CMOS process. It consists of an ALD1101 N-channel MOSFET pair and an ALD1102 Pchannel MOSFET pair in one package. The ALD1103 offers high input impedance and negative current temperature co

📥 Download Datasheet

Preview of ALD1103 PDF

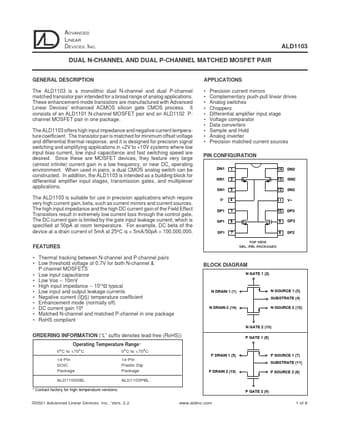

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ALD1103
Manufacturer
Advanced Linear Devices
File Size
77.09 KB
Datasheet
ALD1103-AdvancedLinearDevices.pdf
Description
DUAL N-CHANNEL AND DUAL P-CHANNEL MATCHED MOSFET PAIR
